DIN7979C Internal Thread Taper Pin | 40Cr Unhardened Ground Locating Pin

Product overview

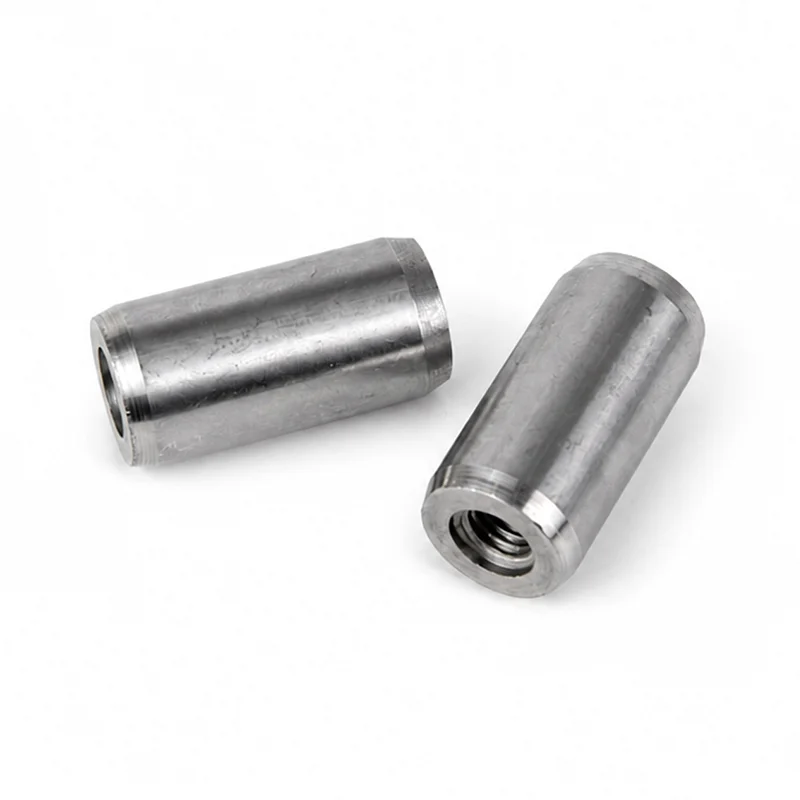

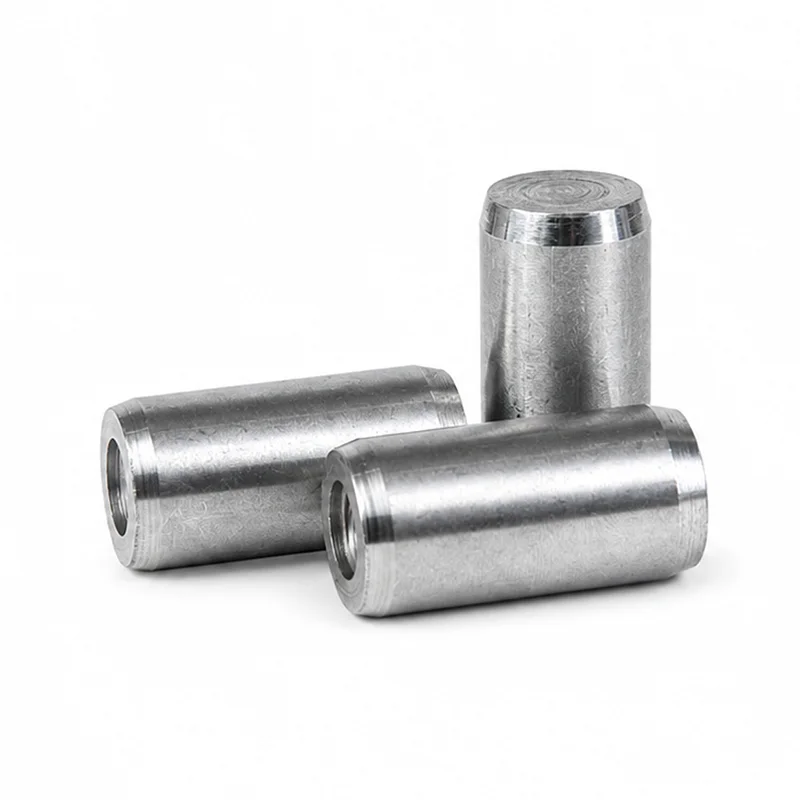

DIN7979C is German standard 1:50 taper locating pin with internal thread on large end. Made of 40Cr alloy steel without heat treatment, precision ground for natural bright finish and coated with anti-rust oil. Flat neat chamfered end without obvious machining marks, internal thread enables easy pulling out, ideal for blind hole and deep hole precision positioning.

Material & Surface Treatment

Raw material is 40Cr alloy steel without quenching and tempering heat treatment. Outer circle precision ground to original bright metal surface, no plating or blackening treatment. All products are fully coated with anti-rust oil for storage & transportation rust prevention. End face and chamfer are processed uniformly to keep basic flatness, free of burrs and visible cutting scratches.

Features & Advantages

• Standard Compliance：Produced per DIN7979C specification with standard 1:50 taper, high dimensional accuracy and interchangeability. • Convenient Demounting：Large-end inner thread, fit pull-out screw for easy removal, applicable for blind hole mounting. • Fine Machining：Flat end face & neat chamfer, ground smooth surface without obvious tool marks. • Material Property：40Cr without heat treatment, good toughness, easy on-site trimming and matching. • Surface Protection：Bright bare finish plus anti-rust oil coating for effective temporary rust resistance.

Application

DIN7979C 40Cr ground taper pins are widely used in injection molds, fixture toolings, gearboxes, pump bodies, valve parts and automation equipment, especially for deep blind hole positioning.
