DIN7978 Internal Thread Dowel Pin | 40Cr Bright Unhardened Threaded Locating Pin

Product overview

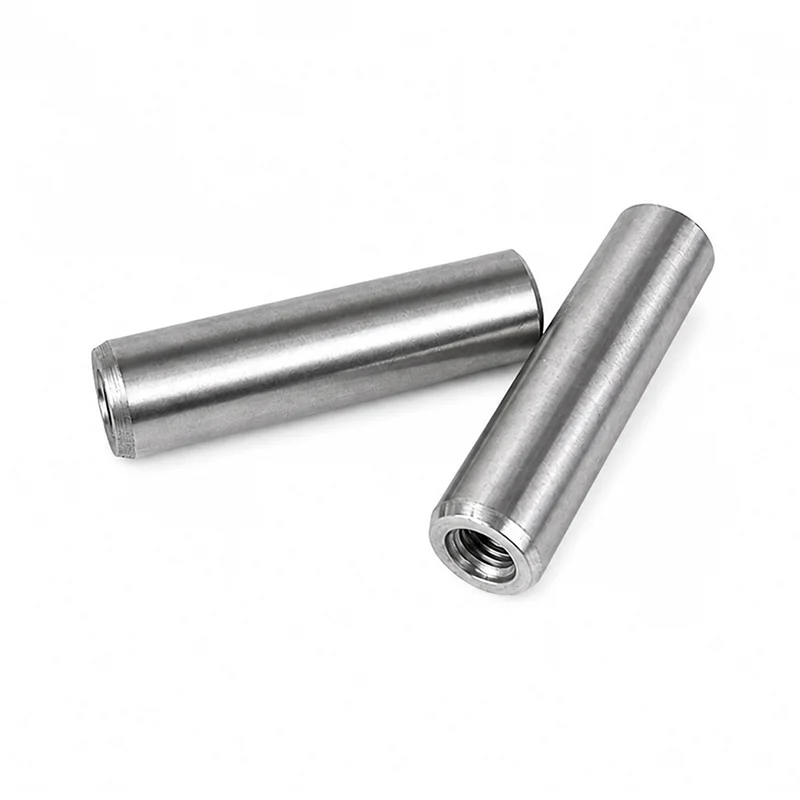

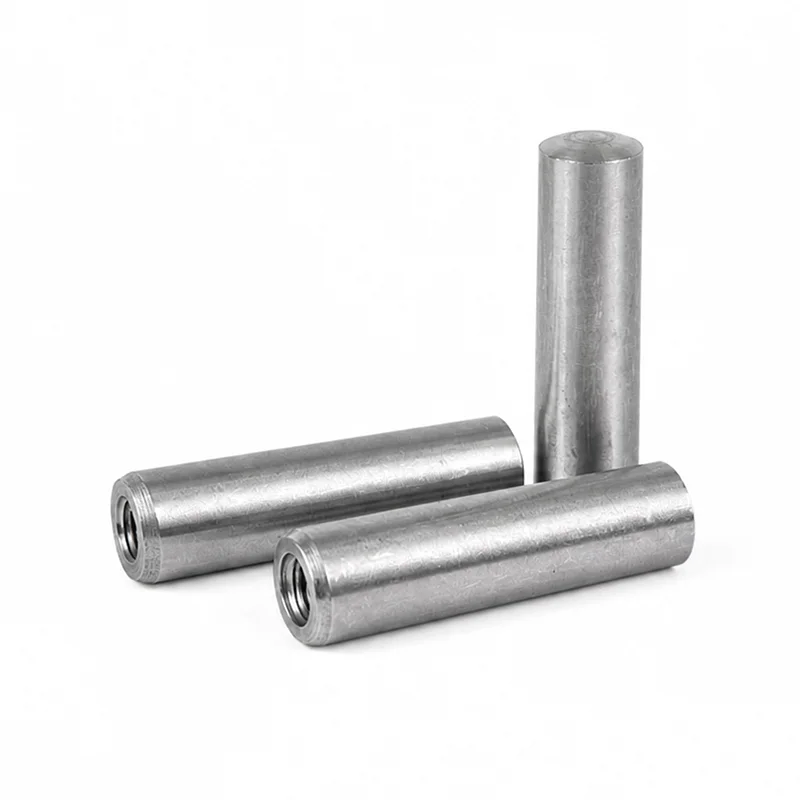

DIN7978 is German standard solid cylindrical pin with internal thread at one end and smooth spherical end face. Made from 40Cr alloy steel without heat treatment, precision ground to original bright surface and coated with anti-rust oil. Smooth spherical end without tool marks, internal thread enables convenient disassembly, widely used for deep-hole positioning of mechanical components.

Material & Surface Treatment

Raw material adopts 40Cr alloy steel without quenching & tempering heat treatment. Outer diameter precision grinding to retain natural bright steel finish, no plating or black oxide. All pins are fully coated with anti-rust oil for rust prevention during storage and transportation. Single end spherical surface is uniformly polished with smooth radian, free of burrs and visible tool scratches.

Features & Advantages

• Standard Compliance：Strictly produced per DIN7978 standard, precise tolerance, well matched standard mounting holes. • Easy Disassembly：Inner thread design, connect pull-out screw to take out pin conveniently for deep blind hole. • Fine Appearance：Smooth spherical end, ground surface without obvious tool marks. • Material Performance：40Cr without heat treatment, good toughness, convenient on-site trimming modification. • Surface Protection：Bright original finish plus anti-rust oil, effective short-term rust protection.

Application

DIN7978 40Cr ground pins are widely used for mold positioning, fixture jigs, gearbox, pump, valve and automation equipment, especially for blind hole and deep hole assembly requiring later disassembly.
