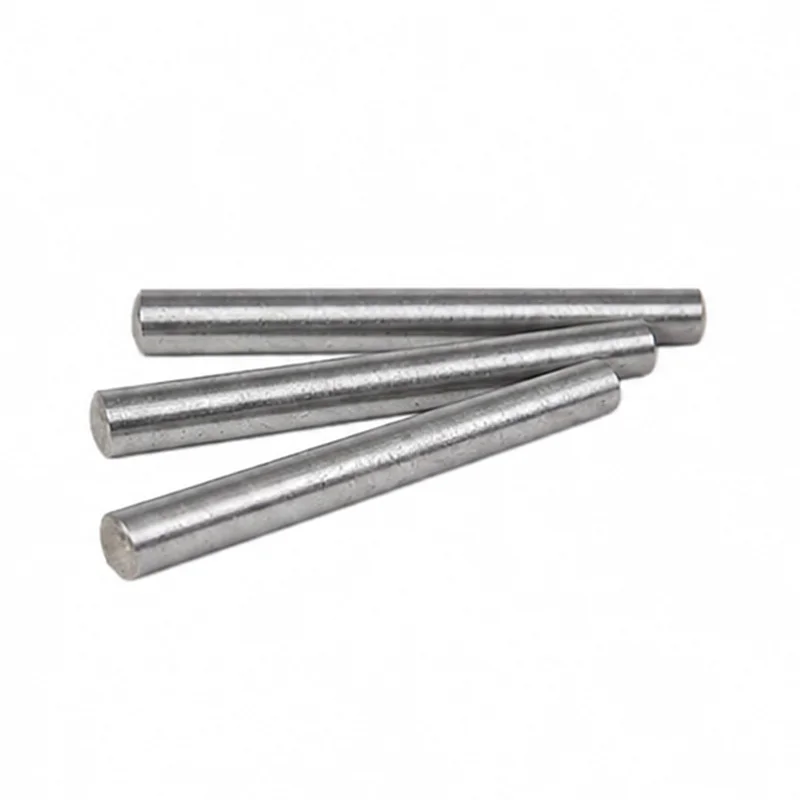

DIN1 Cylindrical Dowel Pin | 40Cr Bright Ground Unhardened Locating PinProduct overview

Product overview

DIN1 is German standard solid cylindrical locating pin with uniform spherical rounded ends. Made of 40Cr alloy steel without heat treatment, finished by precision centerless grinding to natural bright surface and anti-rust oil coating. Smooth surface free of tool marks, high dimensional precision for precision assembly positioning and detachable connection of mechanical parts.

Material & Surface Treatment

Raw material adopts 40Cr alloy steel, finished without quenching and tempering heat treatment. Outer diameter processed by precision grinding for bright natural metallic finish without plating or blackening. Final procedure is surface anti-rust oil coating to prevent oxidation and rust during storage and transportation. Both ends are machined into uniformly smooth spherical arc, surface free of burrs and cutting marks.

Features & Advantages

• Standard Compliance：Manufactured strictly per DIN1 standard, tight dimensional tolerance, interchangeable matching standard pin holes. • Fine Appearance：Double ends smooth consistent spherical surface, grinding finish without visible tool scratches. • Raw Material：40Cr alloy steel without heat treatment, good toughness for easy cutting and on-site fitting. • Natural Bright Finish：Ground bare metal surface, coated with anti-rust oil for temporary rust prevention. • Easy Assembly：Spherical end guides smooth press fitting, effectively preventing hole damage during installation.

Application

DIN1 40Cr unhardened ground pins are widely used for positioning of mould accessories, general mechanical equipment, tooling fixtures, automated jigs, cabinet components and valve fittings; they are applicable to low-load precision positioning as well as periodic disassembly and maintenance.
