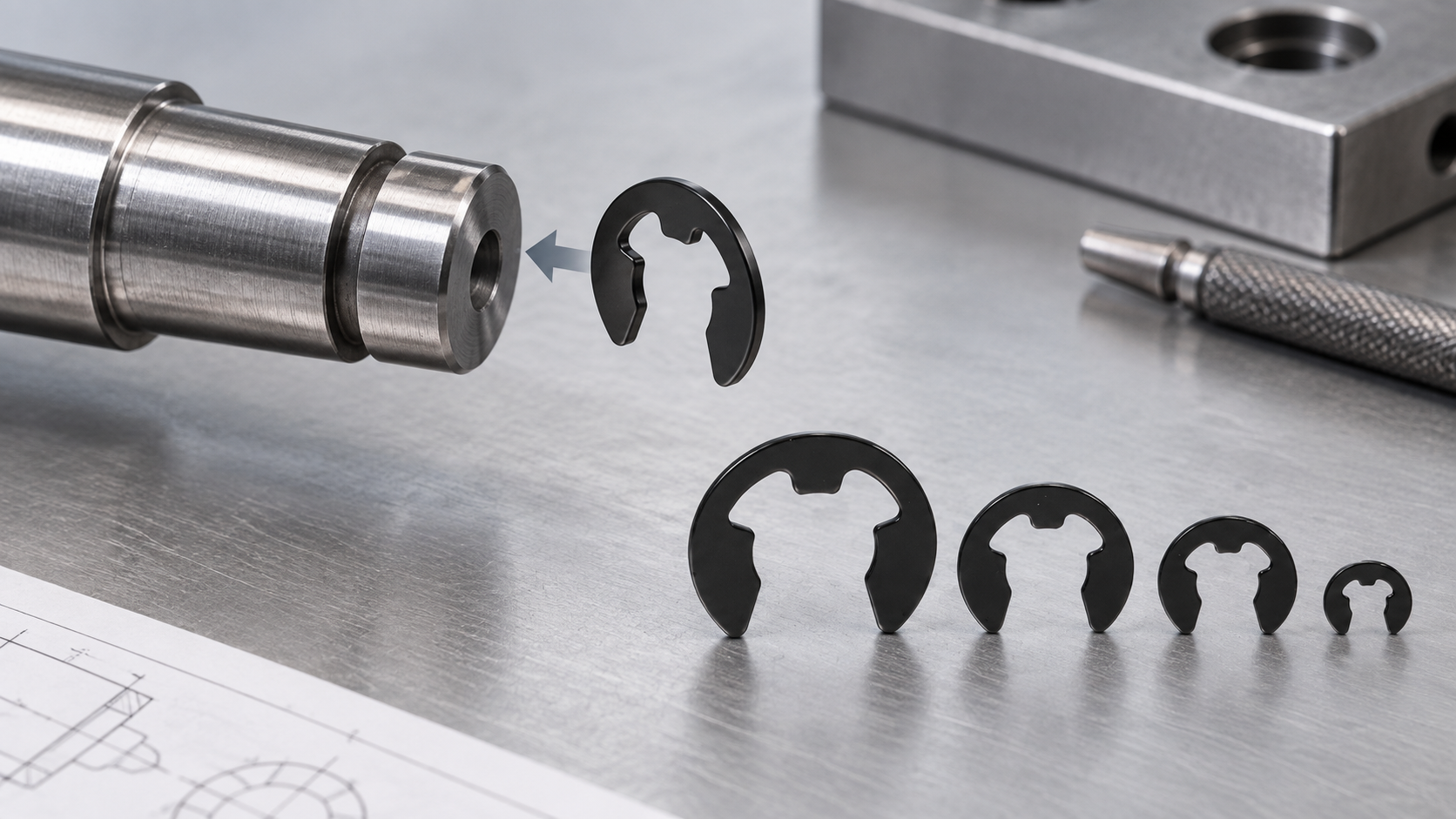

What is an E-clip? If a buyer searches “what is an e clip,” the practical answer is a radial-entry retaining ring that fits into a groove on the outside of a shaft. The e ring clip name describes the familiar shape, but the application still depends on the shaft, groove, installation access, and retained component. Its open, E-shaped profile lets an installer push the ring sideways onto the shaft instead of sliding a closed ring over the shaft end. Once seated, the clip creates a shoulder that limits axial movement of a retained part.
The name is useful, but it is not a complete specification. A buyer still needs to identify the shaft diameter, groove condition, retaining direction, material, finish, quantity, and inspection requirements. The product family and standard must also match the assembly rather than being chosen from the word “clip” alone.
An E-clip engages a prepared shaft groove through radial installation. The groove gives the clip a seating location, while the ring’s profile provides the axial shoulder. The retained component must be compatible with the available shoulder height, radial clearance, and shaft geometry.
This arrangement is useful when the shaft end is enclosed or when side access makes an end-installed ring impractical. It still requires enough clearance for safe installation and later inspection.
This makes an E-clip different from a ring that installs axially. An axial snap ring normally enters from the end of a shaft or into a bore and depends on a matching shaft or bore groove. An E-clip enters from the side, so the assembly must leave enough radial access for the installation tool and the ring.
| Question | E-clip decision | Why it matters |
|---|---|---|
| Where is the groove? | On the outside diameter of a shaft | Defines the retaining location |
| How does the ring enter? | Radially from the side | Requires tool and access clearance |
| What must the drawing identify? | Shaft, groove, ring family, material, finish, and inspection | Prevents a name-only order |
Start with the shaft and groove, not the catalog name. Confirm the shaft diameter and the groove dimensions that control seating. Check the shoulder available to the retained component, the space around the clip, and whether an installer can approach the groove from the side.
Then define the ring itself. The material and finish should match the environment and the mating parts. Do not assume that an E-clip is interchangeable with an axial snap ring simply because both limit axial movement. Their installation direction, groove geometry, and contact shape can differ.
For a DIN 6799 application, Eugene’s DIN 6799 E-type circlip page is a product-family starting point. It does not replace a drawing review or prove a universal load rating. If the assembly needs a size-specific decision, keep the exact shaft and groove requirements in the inquiry.
For a size-specific inquiry, send the drawing, shaft and groove details, material, finish, quantity, and inspection requirements rather than asking for an E-clip by name only.
An E-clip is used to limit axial movement on a shaft when the assembly allows radial installation into an outside shaft groove. The shaft, groove, retained component, and access space must all support the choice.
An E-clip enters the shaft groove from the side. An axial snap ring normally installs from the shaft end or inside a bore. They may perform a similar retaining job, but their groove, access, tool, and drawing requirements are not automatically interchangeable. Record the selected ring family, groove condition, installation direction, and inspection point on the drawing before release for the final production drawing.
Product scope reference: Eugene’s DIN 6799 E-type circlip page is a first-party product-family starting point. Confirm the shaft, groove, and inspection requirements on the final drawing before release.
